Options for Expanding Your Productivity

Simultaneously Control Up to Three Injection Units and Four Detectors

Up to four types of injection units or six types of detectors can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.

Note: The number of detectors installed depends on the type. The injection port can control up to two devices simultaneously.

Inlets

Split/Splitless Injector (SPL)
  • The carrier gas saver function reduces split gas consumption.
  • Inactivation options
Direct Injection Unit (WBI)
  • Shares and simplifies the glass inserts for splitless analysis (patented).
On-Column Injection Unit (OCI)
  • Supports analysis of high-boiling compounds (straight-chain hydrocarbons with 100 or more carbons)
Programmed Temperature Vaporization Injector (PTV)
  • Uses an inert heat-resistant quartz insert.
Packed Column Injection Unit (SINJ)
  • Glas s packed column and SUS packed column can be connected.


Detectors

Barrier Discharge Ionization Detector (BID)



 The barrier discharge ionization detector (BID-2030) is a universal detector that offers high-sensitivity analysis by using a low-frequency dielectric barrier discharge plasma for ionization. The BID generates helium (He) plasma by applying a high voltage to a quartz glass tube. The light energy from the He plasma then ionizes the target components and the ions are collected and output as peaks using a collection electrode. A wide variety of compounds other than He and neon (Ne) are detected with high sensitivity.
Flame Ionization Detector (FID) The jet and collector structure on the flame ionization detector (FID-2030) has been optimized to provide improved performance. Noise levels were also decreased by improving the stability of the signal processor and flow controller. This results in the world’s most sensitive FID*.
Sulfur Chemiluminescence Detector (SCD) SCDs are the most sensitive GC detectors for measuring sulfur components. The Nexis SCD-2030 is equipped with an ultra-short flow path and high efficiency redox cell, so it provides the world’s highest level* of sensitivity and stability. In addition, detector startup is automated, easing the burden on operators.
Thermal Conductivity Detector (TCD)
  • Enables more reliable analysis that is less easily affected by column oven temperature.
  • Analysis for inorganic gases and high-concentration organic compounds.
Flame Photometric Detector (FPD)
  • A novel optical system with a more advanced dual-focus system results in the world's highest* sensitivity.
  • Analysis for organic phosphorus compounds and sulfur compounds.
Electron Capture Detector (ECD)
  • High sensitivity and a wide dynamic range are achieved by adopting ECD cell structure and purge flowrate optimization, as well as highly durable materials.
  • Analysis for electrophilic compounds.
Flame Thermionic Detector (FTD)
  • An improved collector reduces the negative peaks from
    impurity components.
  • Collectors can be replaced without tools.
  • Analysis for organic nitrogen compounds and organic phosphorus compounds.



*As of July 2021, according to a Shimadzu survey

Logiciel GC

  • Shimadzu GC Driver Ver. 3.2 with Waters Empower™ Compatibility
    Shimadzu GC Driver for Waters Empower
    • Logiciel GC
    • Drivers

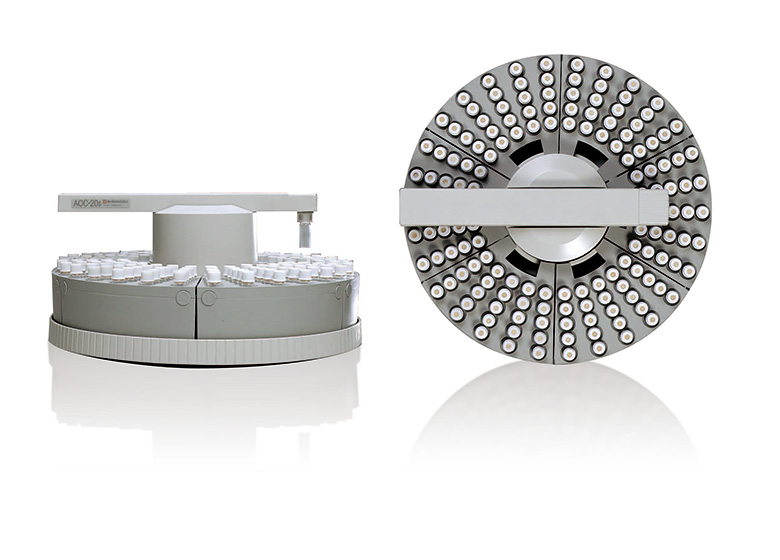

    Waters Empower chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.
  • Shimadzu GC Driver Ver. 2.2 with Thermo Scientific™ Chromeleon™ Compatibility
    Shimadzu GC Driver for Chromeleon™ 7
    • Logiciel GC
    • Drivers
    Chromeleon chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance and support capillary/packed column analysis using only a single GC-2030 system.
  • Calorific Value Calculation Software
    Calorific Value Calculation Software
    • Logiciel GC
    The Calorific Calculation Software can automatically calculate calorific values and generate reports that comply with BTU and ISO 6976. In addition, the target gas can be registered according to the customer’s requirement.
  • Shimadzu GC Driver Ver. 2.2 with Agilent OpenLab™ CDS Compatibility
    Shimadzu GC Driver for OpenLab CDS
    • Logiciel GC
    • Drivers
    Agilent OpenLab CDS chromatography data systems can now be used to control AOC-30 autoinjectors in Shimadzu Nexis™ GC-2030 systems and perform packed column analysis. Space-saving AOC-30 systems offer reliable and long-term performance, and support capillary/packed column analysis using only a single GC-2030 system.

Gamme logiciel LabSolutions

  • LabSolutions CS
    LabSolutions CS
    • Gamme logiciel LabSolutions
    • Logiciel GC
    • Logiciel LC

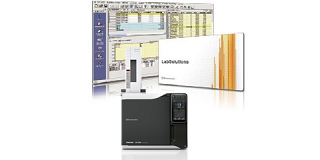

    LabSolutions CS offre un environnement d'exploitation innovant et une gestion complète des données afin de garantir la sécurité des informations dans les laboratoires en réseau.
  • LabSolutions DB
    LabSolutions DB
    • Gamme logiciel LabSolutions
    • Logiciel GC
    • Logiciel LC

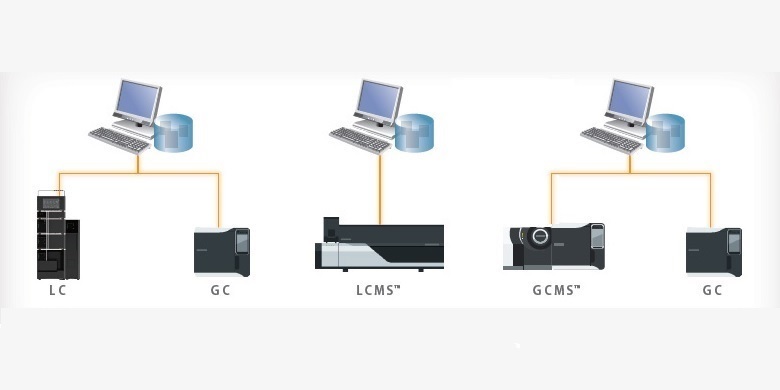

    LabSolutions DB a une fonction de gestion des données et est conforme aux règlements ER/ES. Il est configuré de manière optimale pour les clients utilisant un PC.
