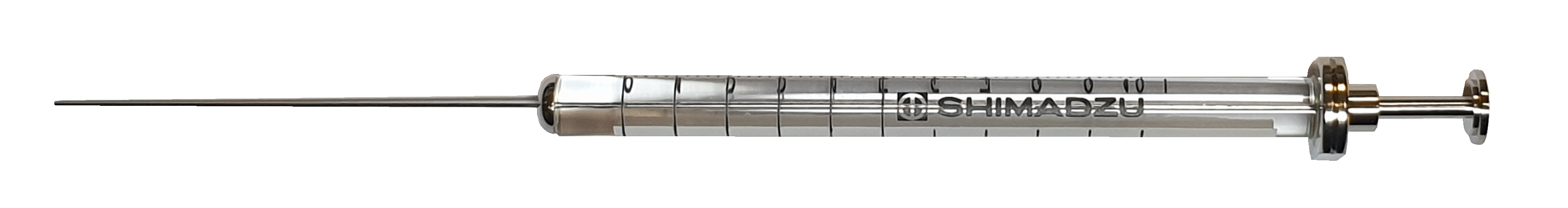

221-75175

Syringes for AOC-5000 & AOC-5000 Plus

Standard recommendation:
221-75175-01: 10 µl syringe with metal plunger for standard applications
221-75175-03: 10 µl syringe with PTFE tipped plunger for gas and viscous samples, minimized plunger bending
221-75179-01: 2.5 mL syringe for headspace analysis

Specifications & Ordering Information



P/N Syringe Volume PTFE Tipped Plunger Needle Length [mm] Needle Gauge Needle Tip
221-75175 10 µl - 50 26 Cone
221-75175-01 10 µl - 50 23 Cone
221-75176 10 µl - 80 26 Cone
221-75176-01 10 µl - 80 23 Cone
221-75175-02 10 µl yes 50 26 Cone
221-75175-03 10 µl yes 50 23 Cone
221-75177 25 µl yes 50 23 Cone
221-75178 1 ml yes
For Headspace
50 26 Side Hole Dome
221-75178-01 1 ml yes
For Headspace
50 23 Side Hole Dome
221-75179 2.5 ml yes
For Headspace
50 26 Side Hole Dome
221-75179-01 2.5 ml yes
For Headspace
50 23 Side Hole Dome

All syringes have fixed needles
