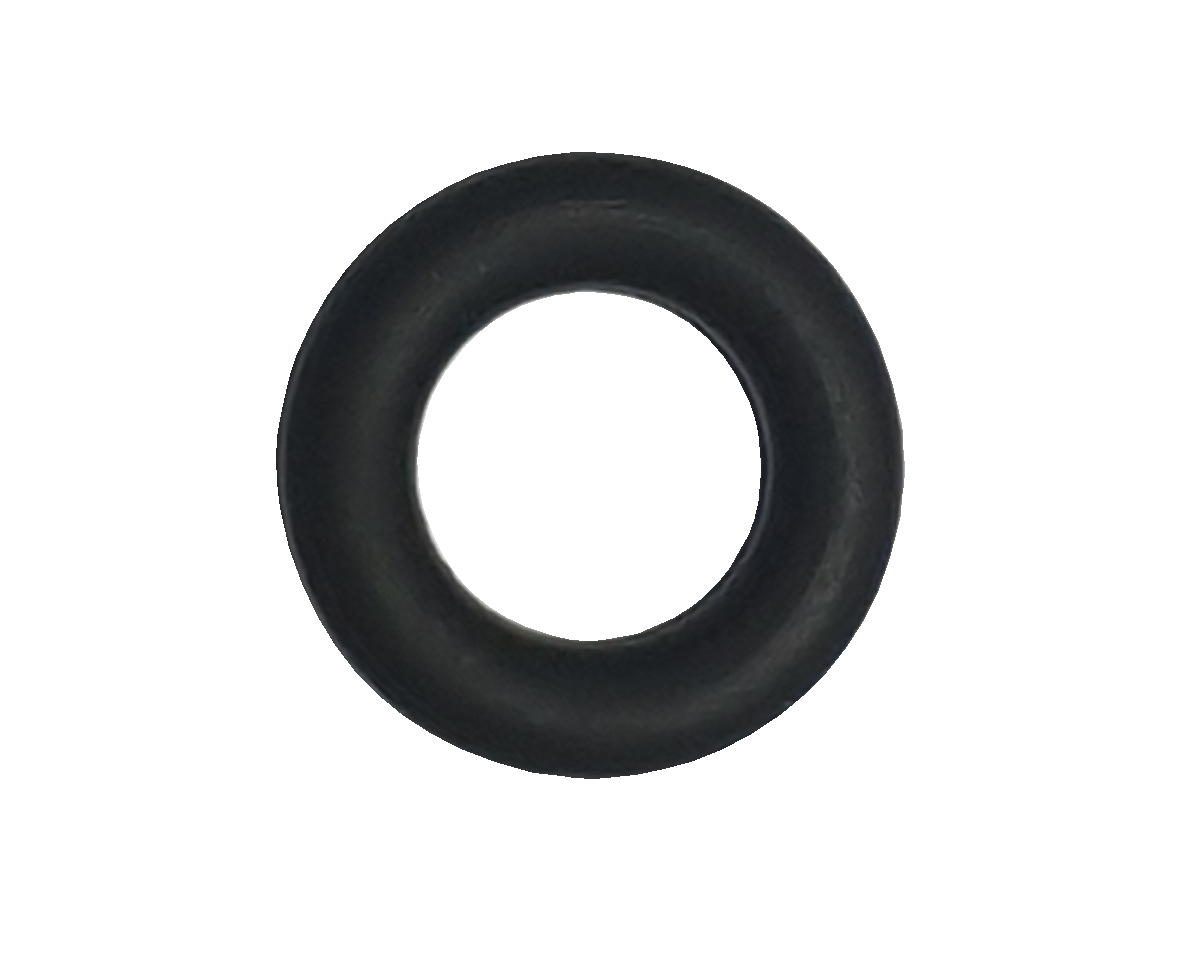

O-ring

O-rings

O-rings are used around the liner and are needed to seal the injector and make sure that the carrier gas goes into and out of the liner, and not around it. They can be made of different materials:

- Viton – for MS applications
- Fluororubber – for GC applications, more robust than Kalrez
- Kalrez – for GC applications, less impurity outgas than fluororubber


Standard recommendation:

227-35005-01 – for GC-MS applications  (SPL-injectors)
036-11352-03      – for GC applications (SPL-injectors)

P/N Pack Size Max. Temperature* °C Description
227-35005-01 10 300 Viton O-ring for standard GC-MS applications
036-11352-03 1 450 Fluororubber O-ring for standard GC applications
036-11352-01 1 450 Fluororubber O-ring for OCI/PTV injectors
036-11544-01 1 450 Kalrez O-ring for high temperature applications
036-11544-02 1 450 Kalrez O-ring for high temperature OCI/PTV applications
980-16209 10 400 Viton O-ring for Optic applications

*This temperature refers to that of the injector, not the actual temperature of the O-ring.
