Gas Chromatography Systems Comparison

This page provides a quick overview of 4 models of gas chromatography systems. Choose the model that best suits your analysis needs from the high-end Nexis GC-2030 for efficient routine analysis with its exceptional performance and high-throughput capabilities to the compact GC-2025 energy-saving capillary gas chromatograph with high value performance.​

Contents

1. Summary of Product Features​



thumb_gc2030

Nexis GC-2030

Designed with the Analyst in Mind​
The Nexis GC-2030 features Analytical Intelligence and enables all users to monitor the instrument status and set parameters with ease.

Best-in-class Sensitivity and Reproducibility​
Nexis GC-2030 provides the best-in-class analysis accuracy. This makes the Nexis GC-2030 the best choice to ​measure residual solvents in pharmaceuticals.​

Exceptional Extensibility and Productivity​
The most optimized system can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.​

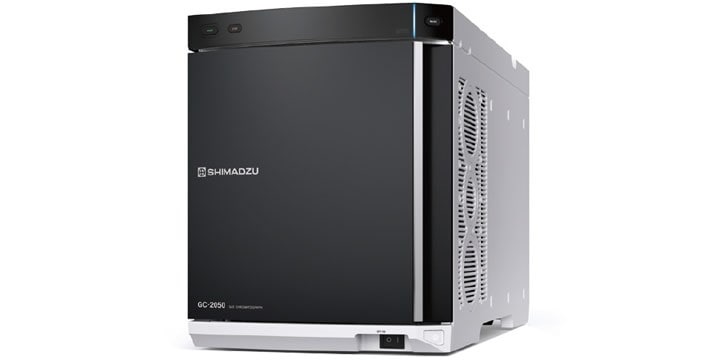

Brevis GC-2050

Brevis™ GC-2050 ​​

Compact without Compromise​
Space-saving yet expandable design
Sufficient GC oven size
Compact and easy to maintain

Built-in Analytical Intelligence
Automatic remote operation
Automating the procedures of experienced analysts
Supply gas check

Best-in-Class Performance​​
Outstanding analytical reproducibility



2010

GC-2010 Pro​​​

Flexible Lineup for Various Analysis​
Two analytical lines can be operated simultaneously for different applications.​

Industry Leading Detector Sensitivity​
All detectors of GC-2010 Pro realize high sensitivity in miniaturization design to meet the ever-increasing demands for trace level analysis.​

Options Enhancing Scalability​​
Simultaneously install up to three injection units and up to three detectors to suit the needs of your analysis.



gc2014top2

GC-2014​​​

Superior Performance
Improved design and innovative technology for all of our injectors, detectors and flow controllers equal or surpass our GC-2010 the high-end technology leader.​​​

Excellent User Interface​
Large LCD, all digital gases control and auto-diagnostics inherited from the GC-2010 – “The Most advanced, easy-to-use interface”​​​

Expandability to Support all Types of Analysis​​​
Use any column types for any analysis. Packed or capillary columns give you the freedom to choose the best technique for your measurement. Fully integrated multiple valve systems are made simple for optimum performance for System GC custom GC products.​



gc20252

GC-2025​

Eco-Friendly Model​
A compact design and efficient insulating materials inside the oven minimize the heat capacity and heat loss, reducing electricity costs and realizing more environmentally friendly operation.​

Compact, All-in-One Design​
With a compact design, the GC-2025 minimizes space requirements while maintaining the necessary features for normal capillary analysis. ​

High Performance​
The GC-2025 delivers superb performance for capillary analysis and provides high-quality analytical results as well as improved productivity. ​

2. Comparison Table

  Nexis GC-2030 Brevis GC-2050 GC-2010 Pro GC-2014

GC-2025
(Discontinued)

Display
Full-color touch screen
Remote display
(Windows app)
Monochrome LCD
Monochrome LCD
Monochrome LCD
Shimadzu AI
checkpoint%202
checkpoint%202
N/A
N/A
N/A
ClickTek*1
checkpoint%202
(Inlet/column)
checkpoint%202
(Inlet/column)
checkpoint%202
(column only)
N/A​
checkpoint%202
(column only)​
Auto Injector/Sampler
(Sample Capacity)
AOC-30/20 series
(6/12/30/60/150)
AOC-30/20 series
(6/12/30/60/150)
AOC-20 series
(6/12/150)
AOC-20 series
(6/12/150)
AOC-20 series
(6/12/150)
Headspace Sampler/Thermal Desorption
checkpoint%202 / checkpoint%202
checkpoint%202*2/(N/A)​
checkpoint%202 / checkpoint%202
checkpoint%202*2/(N/A)​
checkpoint%202*2/(N/A)​
Dual Injection
checkpoint%202
checkpoint%202
checkpoint%202
N/A
N/A
Multi. Analytical Line
checkpoint%202
checkpoint%202
checkpoint%202
checkpoint%202
N/A
Flow Controller
3rd generation electric controller
3rd generation Electric controller
2nd generation electric controller​
2nd generation electric controller*3
2nd generation electric controller​
Inlet(max)
Split/splitless, Direct, PTV, OCI, Packed (3)
Split/splitless (2)
Split/splitless, Direct, PTV/OCI (2)
Split/splitless, Direct, Packed, Dual packed(2)
Split/splitless (1)
Detector(max)​​*2
FID, TCD, BID, ECD, FPD, FTD, SCD (4)
FID, ECD, FPD
FID, TCD, ECD, FPD, FTD (4)
FID, TCD, ECD, FPD, FTD (4)​
FID (1)
FID Sensitivity
comparison_5L
comparison_4L
comparison_4L
comparison_2L
comparison_3L
Column Oven
Temperature*4
Ambient+2℃ - Max 450℃
Ambient+4℃ - Max 450℃
Ambient+4℃ - Max 450℃
Ambient+10℃ - Max 400℃
Ambient+10℃ - Max 400℃
Oven Dimension (mm)
/Volume (litters)
W280×H280×D175
/13.7
W250×H255×D150
/9.6
W280×H280×D175
/13.7
W250×H360×D175
/15.8
W250×H250×D90
/5.6
Oven Light
checkpoint%202
N/A
N/A
N/A
N/A
Dimension (mm)
W515×H440×D530
W350×H440×D620
W515×H440×D530
W400×H690×D607​
W400×H420×D490​
  Nexis GC-2030 Brevis GC-2050 GC-2010 Pro GC-2014 GC-2025
(Discontinued)

*1: Standard or option may vary depending on the region
*2: Restriction on configuration
*3: Detector flow controller may not be electric
*4: Cooling option available

3. GC Components & Accessories Products​

Accessories%20Products

Gas chromatography requires various peripherals and supplies depending on the analytical ​ purpose, especially as it relates to gas management, flow line configuration, column installation, sample injection and data processing. ​ ​

Browse various accessories and supplies that support Shimadzu GC instruments below.​
